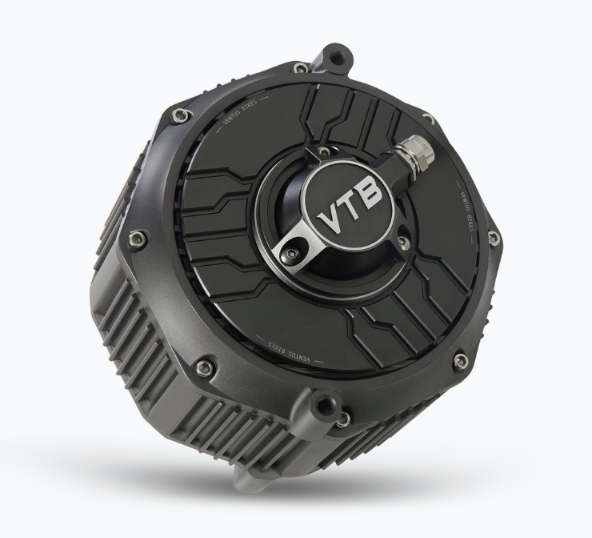

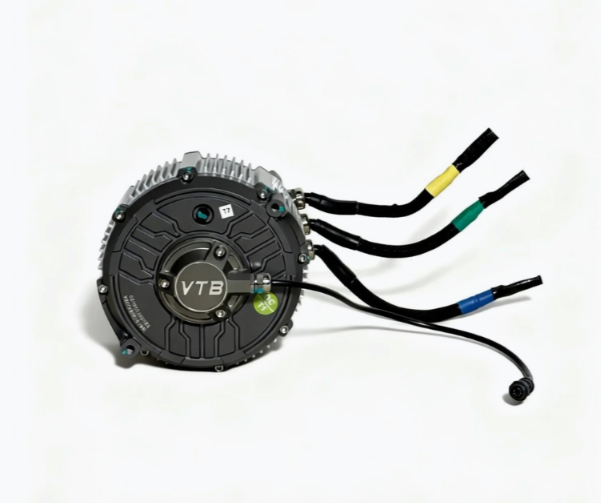

VTB Beast Motor Sur Ron Light Bee 28Kw
UK Stock FAST Delivery
Includes Shipping and Taxes!!
Compatable with VTB, Torp and EBMX controllers
Finance Available (T&Cs Apply)
International shipping available – 20% VAT removed at checkout.
VTB Beast motor is designed to boost the power of Sur Ron bike and make it a true contender in any race or outdoor environment. It ensures a premium riding experience no matter whether on the road or track without overheating concerns. Paired with VTB V9600 controller, it turns a Light Bee into a 28 kW beast. Our CEO took this set up on the Welsh moutain trails and couldnt beleive just how good it is. Hes a heavy guy at 250 lbs in weight, yet the bike was lifting the frot wheel, going up huge clmbs without out a single missed beat – no overheating class!
DIRECT DROP IN REPLACEMENT FOR SUR-RON AND SEGWAY X260.
Max Torque 62N.m
Max Stable Rotor RPM 9500 RPM
Peak Power 28kW
Max Efficiency ≥95%
Working Voltage 48-100V
KV Value 75KV
Motor Temperature
130 deg C start limiting
150 deg C power cut
Max Phase Current 850A
Number of Pole Pairs 5
Phase Wire Terminal SC35-6
Waterproof IP67 Rating
Air Gap Leading 0.5mm rotor air gap empowers its torque to 62N.m
Sensing Method ABZ+PWM encoder for 1024 pulses with 240Hz output frequency
Temperature Sensor NTC 10k thermistors
Shaft High-strength 40CrMoTi Steel Alloy
More Details
Rotor IPM (internal permanent magnet) rotor, most used motor type in electric vehicles, enhances power density
Bearings Top standard sealed bearings with great shock absorption effects and excellent durability
Lamination It uses stator laminations with high magnetic force, restricting eddy-current loss
Stator Winding A leading technique VPI (Vacuum Pressure Impregnation) is applied to stator windings to insulate and protect them
Sensor Terminal VTB beast motor has Nylon M12 circular connection for V9600 controller and 8-pin square sensor terminals to provide higher waterproof level
Specifications
- PEAK POWER = 35000W
- CONTINOUS POWER = 16500W
- High 180 C temp thresholds
- IPM syn RM rotor design
- MAX TORQUE = 62Nm
- MAX EFFICIENCY = 95%
- MAX STABLE ROTOR RPM = 13000RPM
- MOTOR CONFIGURATION = 5 poles
- SENSING METHOD = Both Hall & Encoder
- MAX PHASE CURRENT = 900A
- CONTINUOS CURRENT = 500A
- IP67 WATER RESISTANT
- FW01 72V13KW
- Stator Size130*180mm
- Weight 10.9 kg
- Color Iron Gray
Upgraded Tough Bash Guard
We highly recomend our custom heavy duty bash guard to make fitting this motor so much easier:
Finance
To apply for finance please click the link: https://ideal4finance.com/retail/apply/elecyc
Electron Cycles Limited is an introducer appointed representative of Ideal Sales Solutions Ltd T/A Ideal4Finance. Ideal Sales Solutions is a credit broker and not a lender (FRN 703401). Finance available subject to status. The rate offered is always provisional and will depend upon your personal circumstances, the loan amount and term.
Warranty:
Warranty terms, please check here: https://electroncycles.com/warranty-policy/
Disclaimer is available:
Bike not included
