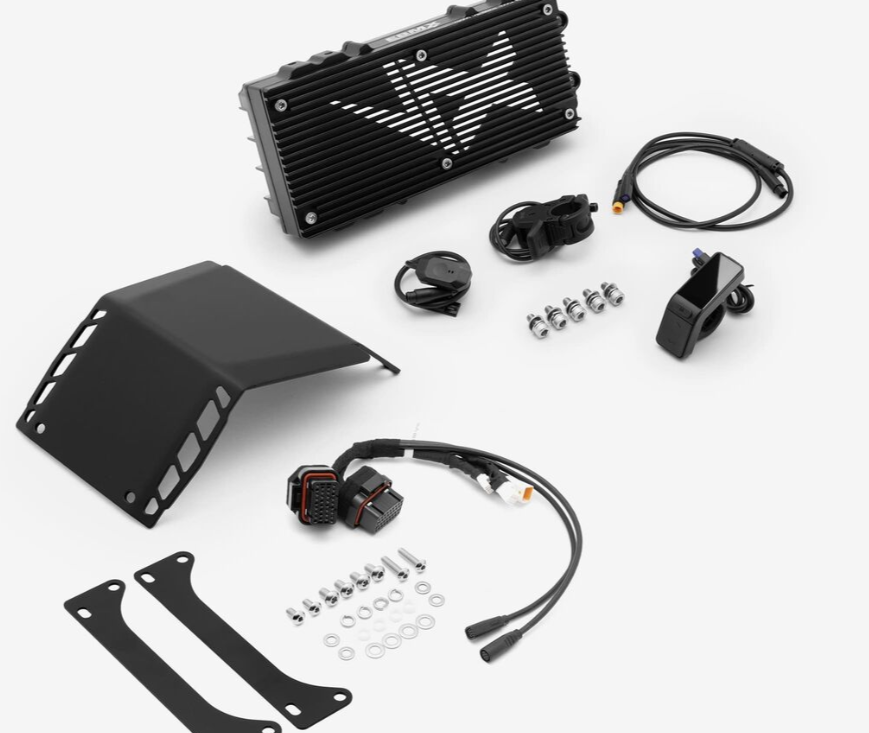

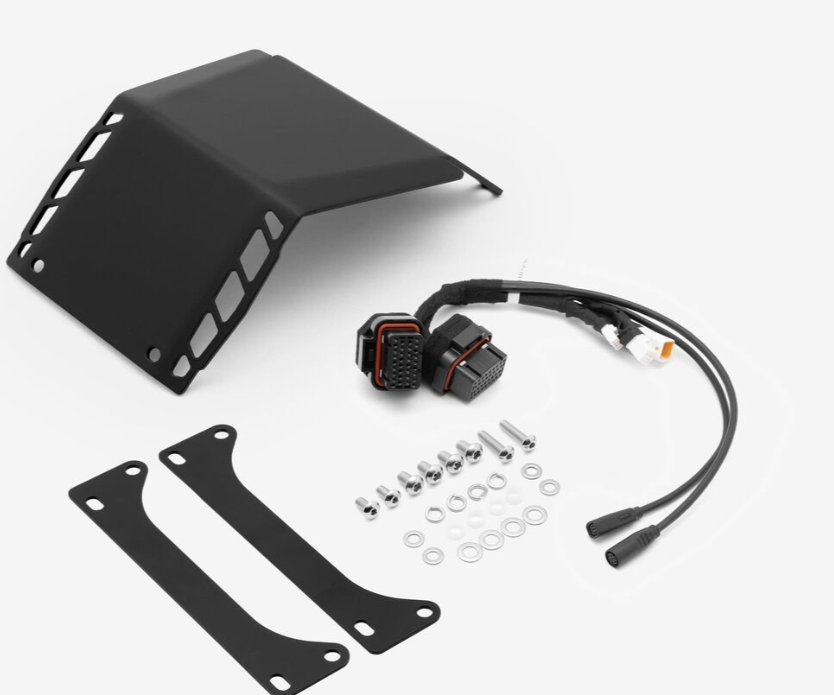

EBMX X-9000 V3 Talaria X3 Motor Controller Power Kit Black

Name: EBMX X-9000 V3 Talaria X3 Motor Controller Power Kit Black
SKU: 1849
Availability: InStock

Fast and Free 2 Day UK shipping

International orders: shipping calculated at checkout. 20% VAT removed. Please email [email protected]

Other colours available for additional fee (see bottom of listing)

Redefine Riding

Engineered for uncompromising power, control, and customization, the X-9000 V3 redefines what you can expect from your electric motor bike. Whether you are tearing up the trails, dominating urban streets or pushing limits on the track, this controller is built to push boundaries and unlock your bike’s full potential.

Power Meets Control

50kW Output | 1000A Phase Current | 1600A Burst
30 12V Infineon MOSFETs for performance and reliability under extreme conditions
Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control

Next Gen Logic

One-Touch Updates – OTA firmware & compatibility expansion
Industry-Leading 68 IO Support – Runs anything from race bikes to full featured builds
Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, greater efficiency
Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, and ti-loop, or stunt mode
Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability.
Race Ready Rider Tuned
6 Fully Customizable Power Levels (Race + Street Modes)
Graphical UI for Throttle Tuning, Regend Braking & EBMX E-Clutch
Load & Go Battery Profiles – Over 15 plug-and-play setups
Preloaded Motor Tunes – 30+ motors supported out of the box

New XSeries App

Complete setup in minutes
Live tuning at the track or trail
Industry leading Technical Support
Quicker diagnostics and expert assistance
Future-ready, compatible with the upcoming EBMX Track Module, DC-DC and much more

Specifications:

RATED POWER: 50kW
PEAK POWER: 60kW
INPUT VOLTAGE RANGE: 40v – 120v
PHASE AMPS: Phase 1000A Continuous – 1600A (burst)
CONTROL METHOD: Field Oriented Control (FOC)
OPERATING TEMPERATURE RANGE: -25 to 80 Degrees Celsius
MAXIMUM EFFICIENCY: >95%

Other colours available for additional fee here: https://electroncycles.com/product/ebmx-x9000-v2-heatsink-stone-guard/

EBMX App User Manual: https://drive.google.com/file/d/11jmD4QAz2745wXwXT0rU_mG-NSMy7ssB/view?usp=sharing

EBMX x-900 Android App: https://play.google.com/store/apps/details?id=com.ebmx.ridecontrol

EBMX x-900 IOS/Apple App: https://apps.apple.com/us/app/ebmx/id1660497388

EBMX application tutorial can be found here: https://www.youtube.com/watch?v=Lh9kwcJHH7o

Bike in photograph not included
