EBMX X-9000 V3 Sur Ron Light Bee Motor Controller Power Kit Black

Next Day Delivery (orders before 12pm)

Fast and Free UK shipping

International orders:  shipping calculated at checkout.  20% VAT removed.  Please email [email protected]

Other colours available £79 here: https://electroncycles.com/product/ebmx-x9000-v2-heatsink-stone-guard/

ALL NEW EBMX X-9000 V3 Controller

Built from the ground up for serious riders and racers, the EBMX X-9000_V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.

Whether you’re dominating urban streets, carving trails, or hitting the racetrack, the X-9000_V3 delivers unmatched power, precision, and customization.

We stock: Black, Blue, Gold, Purple, Red.

Power Meets Control

• 50kW Output | 1000A Phase Current | 1600A Burst
• 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
• Water-Cooling Option for race-level endurance
• IP67 Rated & CNC Alloy Case – Built to take the punishment
• Max Battery Amps 700amp

Next Gen Logic

• Industry-Leading 68 IO Support – Runs anything, from race bikes to full featured builds
• Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
• Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
• Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability

Race-Ready, Rider Tuned

• 6 Fully Customizable Power Levels (Race + Street Modes)
• Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
• Load & Go Battery Profiles – Over 15 plug-and-play setups
• Preloaded Motor Tunes – 30+ motors supported out of the box
• One-Touch Updates – OTA firmware & compatibility expansion
• The current list of Motors that the X-9000 is compatible with is below:
  • OEM SurRon Light Bee
  • OEM SurRon Ultra Bee
  • OEM Talaria Sting MX3
  • OEM Talaria Sting R MX4
  • OEM Talaria Sting MX5
  • EBMX XLB-60
  • EBMX XTA-60
  • EBMX XUB-80
  • KO RS SurRon
  • KO F Spec SurRon
  • KO F Spec Talaria
  • QS138 – 90H
  • QS138 – 70H
  • OEM E Ride Pro SS 2.0
  • OEM E Ride Pro SS 3.0
  • OEM E Ride Pro SR

  EBMX X-9000-V3 SPECIFICATIONS
  RATED POWER	50kw (CONTINUOUS)
  VOLTAGE	120v
  WORKING VOLTAGE RANGE	48v – 110v
  PHASE	1000A (continuous) 1600A (burst)
  MOSFETS	Infineon
  CONTROL PROTOCAL	Field Oriented Control (FOC) VESC
  FEATURES	Build in IMU for integrated wheel-lift control Dual hall throttle ready X-Series App compatible for custom tuning Pre tuned for stock and aftermarket batteries Tuned for 30+ motors
  FIRMWARE	VESC based motor control and firmware modified by EBMX
  OPERATING TEMPERATURE RANGE	-25 to 80 Degrees Celsius

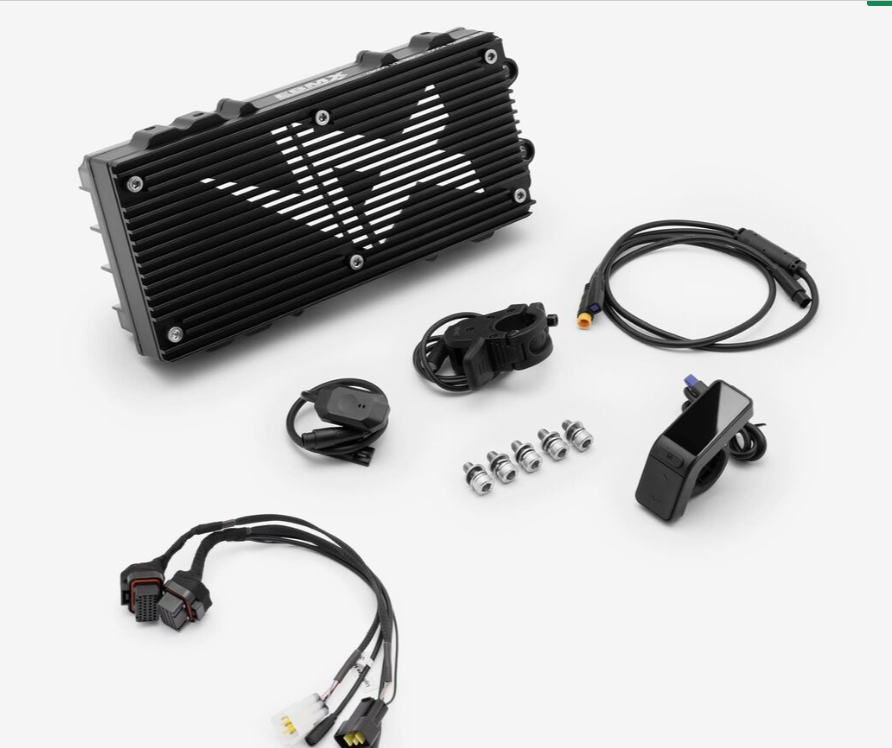

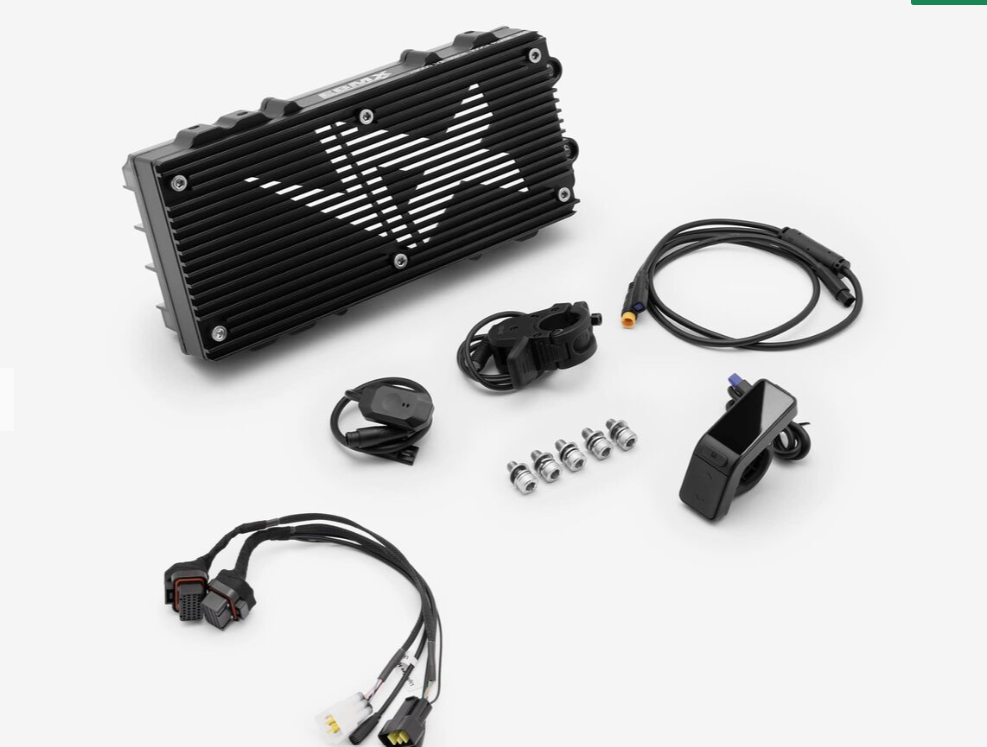

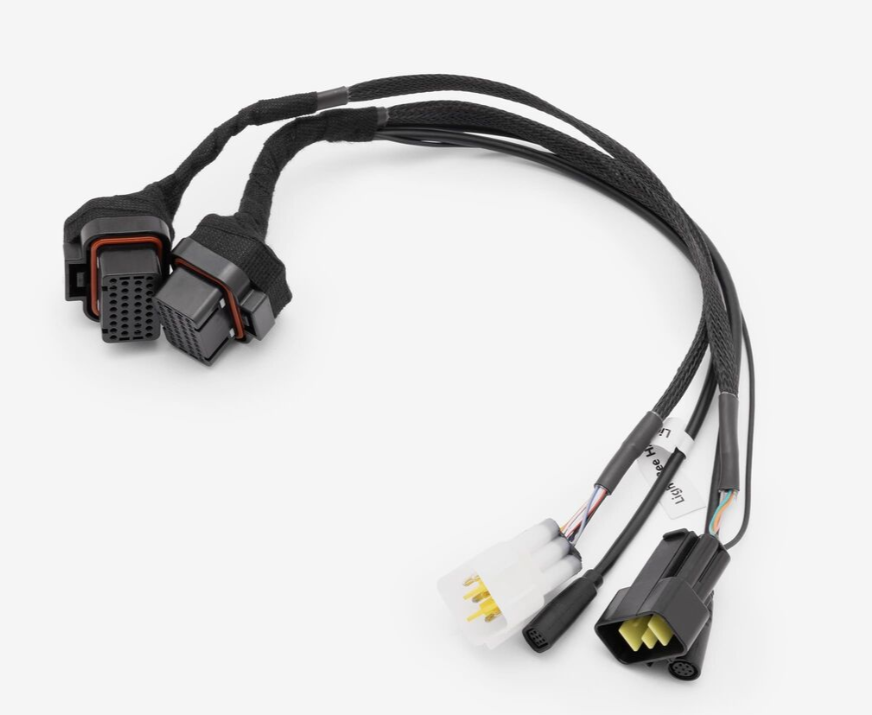

  Kit Contents	X-9000 Controller Plug and Play Harness and Mount Kit Air Cooled Heat Sink (Black) SW102T Color Display Thumb Throttle Bluetooth Module 1-2 Harness
  WATERPROOFING	IP67
  WARRANTY	2 Years

Videos

EBMX V9000 v3 video:                                           https://youtu.be/-Ay1rBUgxAA?si=wEPzELoGFGXJ36Mc
How to setup EBMX WLA for launch assist:      https://youtu.be/r1PxCsEOzik?si=SqQjD-GAEM9OqWUk
Light bee 2025 X9000_V2 install:                       https://youtu.be/r1PxCsEOzik?si=TflLh00FgGksTI97

*Bike in photograph not included

**Coloured v2 heatsinks are compatible with the V3 controllers.  V2 Wiring harnesses are NOT compatible.
