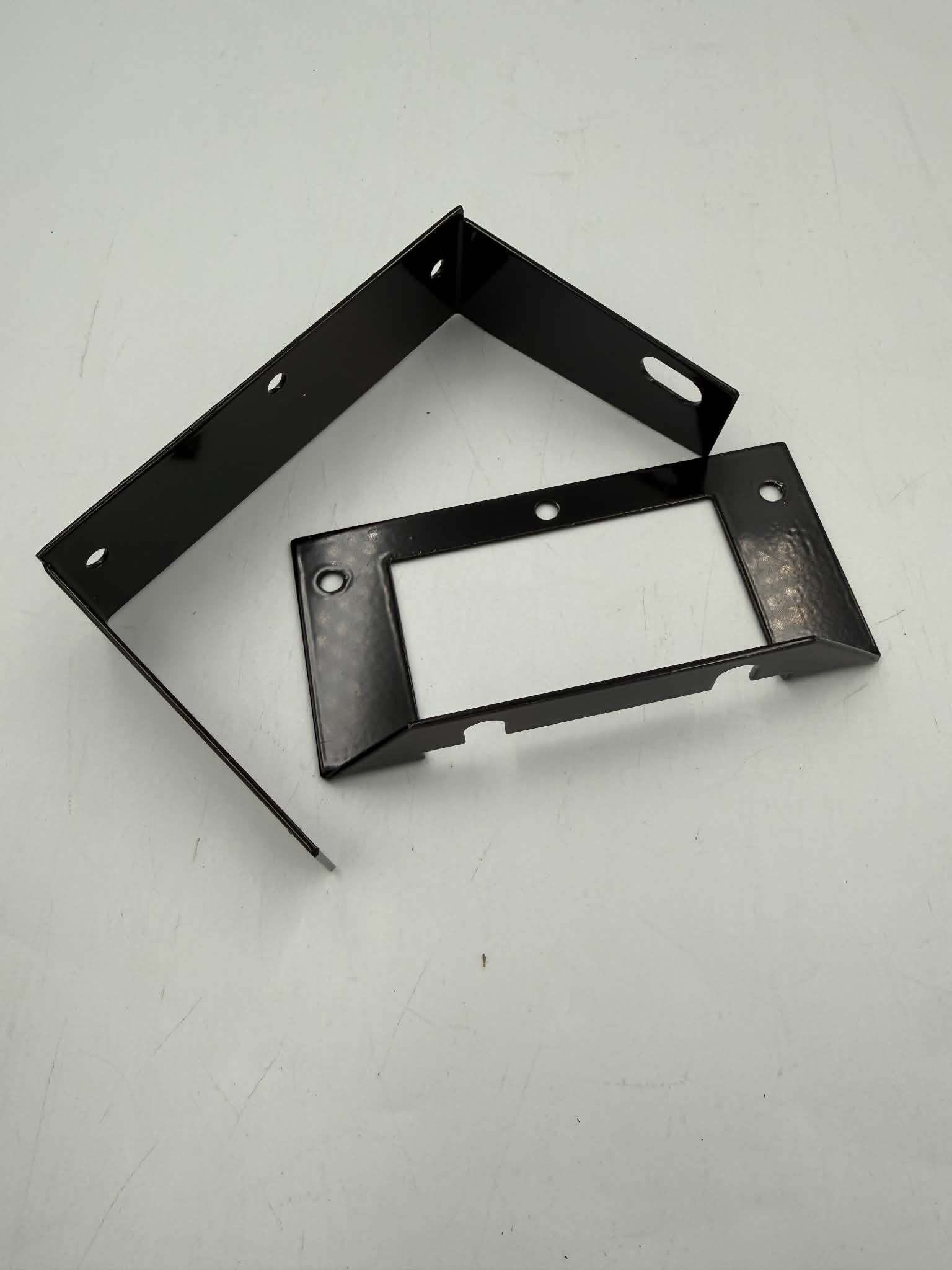

ASI BAC8000 Replacement Mounting Kit

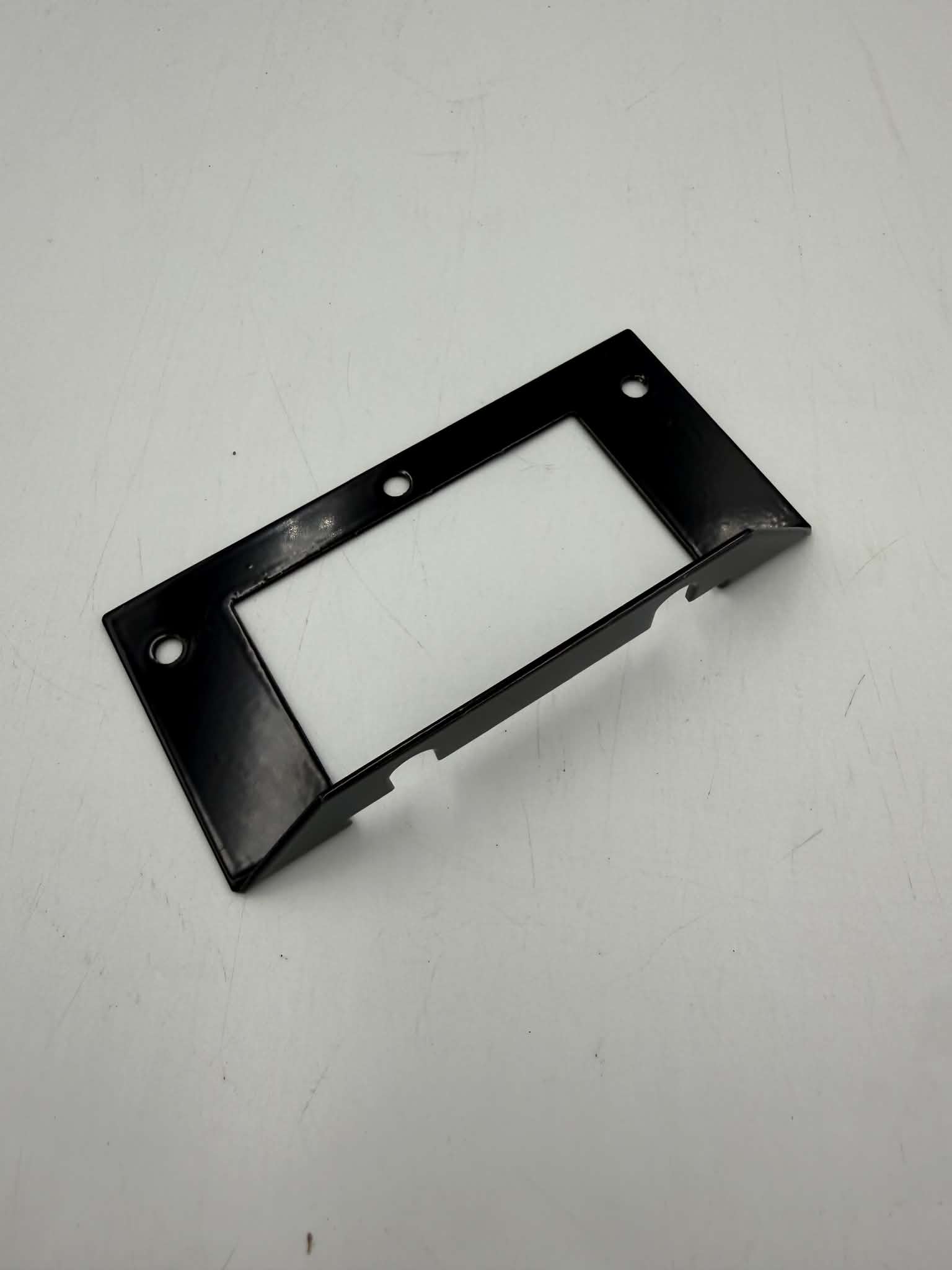

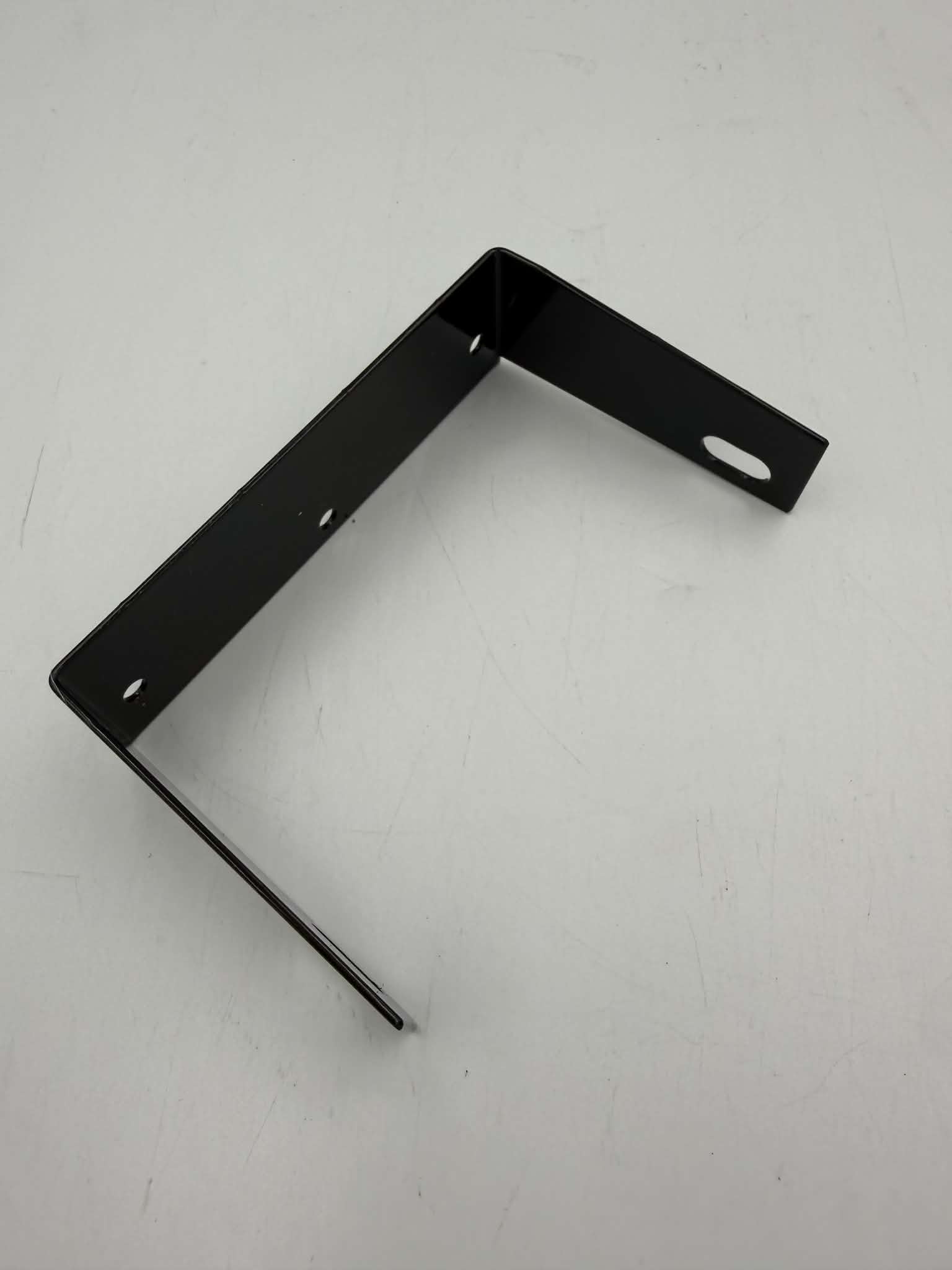

Top and Bottom Bracket made of Powder Coated Stainless Steel.

Fitting:

The top and bottom brackets should be attached to the controller first.  If you have purchased your controller from us they will already be in place.

The top of the controller is the end with the two big plugs.

The plug / cable side goes facing the bike.  The silver plate is outer facing.

The bottom bracket only fits one way.

Bolt the top mount to the bike where the original controller is mounted to the bike (2 bolts). Do not overtighten.

The two bike lower mounting points stick out of the bike for the lower bracket.

The controller should be slid into place, so that you can see through the metal bike mounting point holes and see the bottom 3d printed hole. One either side of the new mounting bracket.

Now gently crimp everything up.  Do not overtighten.

This listing is for the Mounting Kit only.

All other items shown in the photographs are for illustration only.
