, please spend more than £50Talaria Stings 16kw Centurion 72v 50Ah Battery EBMX X9000 Controller
The Perfect Combo for a Standard Motor!
21700 Cylindrical Cells
Tough Protective 316 Stainless Steel Case
Fully Protected BMS
UK Support & Warranty
16Kw, Great Range, Great Size, Fantastic Price!
Shipping: UK (Free) Additional Shipping for Highlands and Islands +£30
EU land ship available, bank transfer only (20% VAT Removed)
For EU please email: [email protected]
Cash on collection available by appointment
Power: High (16Kw)
Range: High (3600Wh over double OEM)
Height: Medium (345mm)
Battery Activation Required On Delivery
On delivery, please send us a request to have your battery activated.
This will also be regarded as confirmation that your battery has been received.

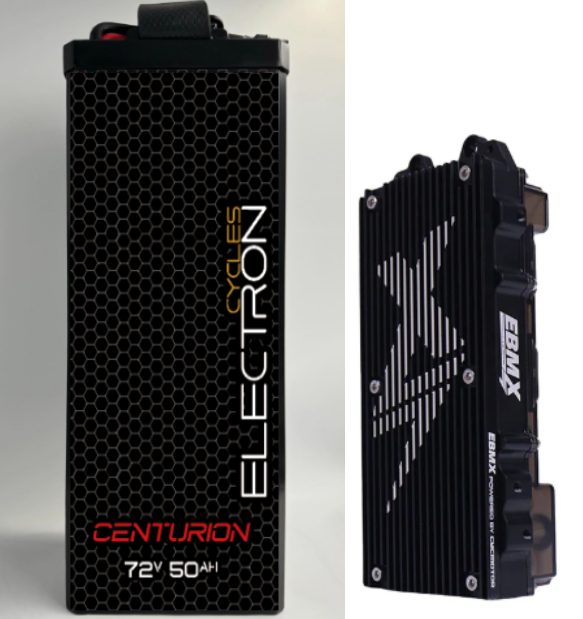

Talaria Stings 16kw Centurion 72v 50Ah Battery EBMX X9000 Controller

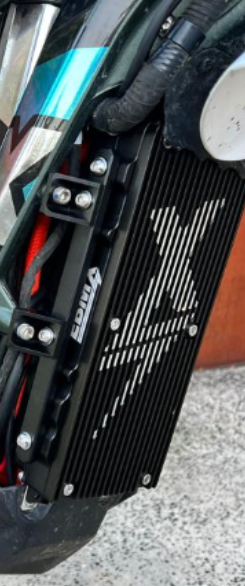

EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Dirt Bike Motor Controller.
The X-9000 V3 has been purpose built from the ground up with a wide range of dirt bike riders in mind and is capable of power inputs of up to 36kW and 900 phase amps (battery and motor permitting) and includes many custom features to dial in the performance and feel of your electric dirt bike.
X–9000 V3 Controller Kit (full set up support included)
Using components sourced from reputable suppliers, each item has been engineered for peak performance, strength and reliability; from the CNC machined internals and bus bars, custom electronics design, injection moulded cover and fully waterproof construction to the custom phone app to build custom tunes, this controller is raising the bar for the industry.
Whether you are trying to nail a wheelie, riding hard Enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 V3 is built to give you ultimate freedom and control.
We stock: Black
Kit Includes:
- SW102 Display with custom EBMX firmware and display settings.
- Harness extension for Sur Ron Light Bee and Talaria Sting
- Variable Thumb Throttle
- Air Cooled Heatsink in Black, Red, Blue or Gold
- Harness for programmable 12v outputs
- Free access to the EBMX App
- All mounting hardware is reused from the stock controller.
- Programming cable and Bluetooth module
- X9000 V3
Install video can be watched here:
EBMX App User Manual: https://drive.google.com/file/d/11jmD4QAz2745wXwXT0rU_mG-NSMy7ssB/view?usp=sharing
EBMX x-900 Android App: https://play.google.com/store/apps/details?id=com.ebmx.ridecontrol
EBMX x-900 IOS/Apple App: https://apps.apple.com/us/app/ebmx/id1660497388
EBMX application tutorial can be found here: https://www.youtube.com/watch?v=Lh9kwcJHH7o
Talaria Battery 72v 20s 50AH 16Kw Centurion
Not everyone wants to go totally ballistic: pay for a BIG power battery and aftermarket motor. When all they really want is: great range, 75 (ish) MPH top speed and lightening acceleration.
A standard battery has around 1600Wh of range. The Talaria Centurion is 3600Wh. That’s DOUBLE the range!!!

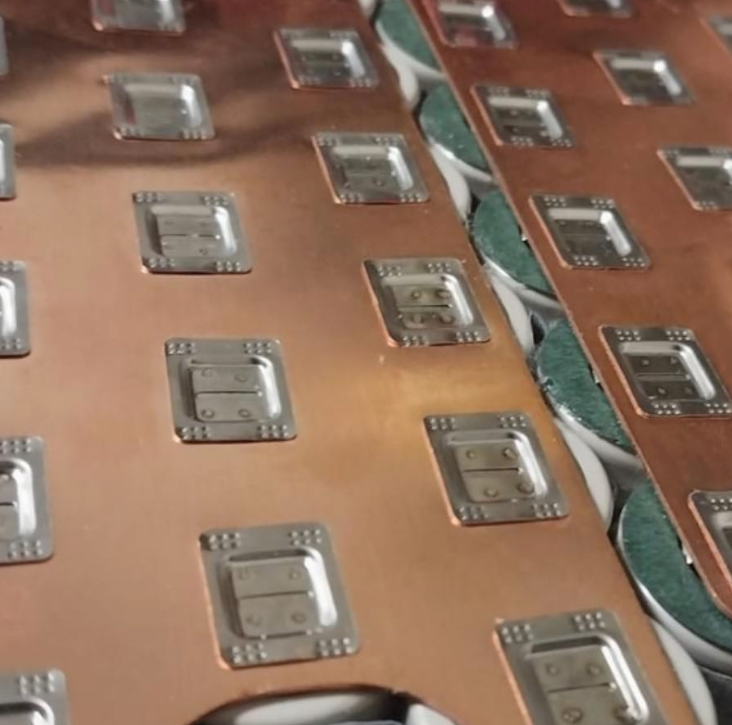

Centurion sits just 5mm higher than the OEM battery in the bike. Just like its bigger brothers in the Electron Cycles Battery List, we have used the best, super tough, 316 marine grade stainless steel casing, powder coated inside and out, it has the big ANT BMS, a single OEM Talaria Connector on 6AWG cable and pure copper sheet connections. Supplied with a high power bike side loom.
Capacity: 50Ah
Voltage: 72V
Driving Range: 165 km (laboratory result measured at the average speed of 25 km/h)
Battery Pack: Grade A 21700 Cells
Battery Cell Lifespan: Minimum 70% of capacity after 3 years
Power: 16kW/ 225A
Phase: 500A
Exoskeleton /Casing
We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.
Connectors
For the main battery to controller connector we use the same type of plug as used by Talaria
Domestic Electrics
This means all your bike accessories are still powered. Some believe that not using the circuit breaker direct to the controller removes the safety of the circuit breaker. However, all our batteries have a full working BMS. Any power shorts or irregular current and the BMS shuts down. This is much more sensitive and accurate than a mechanical breaker (you may note that the Sur Ron Ultra Bee does not use a circuit breaker and relies on the BMS alone).
Specifications Talaria Battery
Battery Charging
First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time. Always charge your battery in a safe place and never unsupervised.
Charger Included
This Battery will not work with an original standard Talaria Controller
Regen & High Power Set Ups
Running regen on high power setups can cause damage to both the controller and your battery. The motor can give massive power spikes if the motor is quickly turned into a generator from wheel spin and re-engagement (wheelies, jumps, hitting potholes hard etc.). The battery is designed to give high power and BMS mosfets struggle to suddenly have such a large reverse current fed into them.
We have seen well known third party controllers give damaging current as the controllers become unreliable under reverse polarity caused by their regen settings. “Motor Off” and thumb regen should be set low or better still turned off. If you are running extreme power like 20+ KW (250A, regen must be turned off. Failure to do so may invalidate your warranty.
Bike Not Included
