, please spend more than £50Talaria Sting 81v Kit EBMX X9000 V3, 81.4v 32kw Trojan Evo Battery
Long Range 4060Wh Battery
* Power up to 32Kw
Controller + Display + 81v Battery 50Ah
700A Phase and 32000W with aftermarket motor.
Higher Volts, Higher Amps Higher RPM+ Higher Speed !
All taxes and import duties paid and free UK shipping – with you in 3 days!
Full UK Support & Warranty
Shipping: UK (Free) Additional Shipping for Highlands and Islands +£30
EU land ship available, Please ask for invoice in your cuurency.
For EU please email: [email protected]
Cash on collection available by appointment
* (32Kw Burst, motor and use permitting)
Power: Very High (32Kw 700Pha)
Range: Very High (4070Kwh 271% Over OEM)
Height: Tall (375mm)
Battery Activation Required On Delivery
On delivery, please send us a request to have your battery activated.
This will also be regarded as confirmation that your battery has been received.

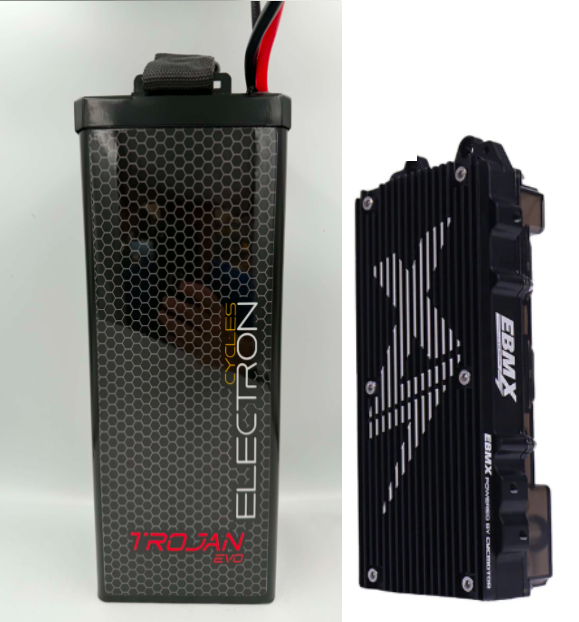

Talaria 81v EBMX Controller & 81.4v Trojan Evo 82v Battery Upgrade combining the EBMX X-9000 V3 Controller and our , including charger. The EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Dirt Bike Motor Controller.
The X-9000 V3 has been purpose built from the ground up with a wide range of dirt bike riders in mind and is capable of power inputs of up to 36kW and 900 phase amps and includes many custom features to dial in the performance and feel of your electric dirt bike.
X–9000 V3 Controller Kit – full set up support included
Comes complete with everything needed for self-installation including plug and play compatibility for Sur Ron Light Bee, Talaria Sting (*Ultra) This will work with all batteries that are 60V 72v 80v and 24s
Using components sourced from reputable suppliers, each item has been engineered for peak performance, strength and reliability; from the CNC machined internals and bus bars, custom electronics design, injection moulded cover and fully waterproof construction to the custom phone app to build custom tunes, this controller is raising the bar for the industry.
Whether you are trying to nail a wheelie, riding hard Enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 V3 is built to give you ultimate freedom and control.
We stock: Black
Kit Includes:
- SW102 Display with custom EBMX firmware and display settings.
- Harness extension for Sur Ron Light Bee and Talaria Sting
- Variable Thumb Throttle
- Air Cooled Heatsink in Black, Red, Blue or Gold
- Harness for programmable 12v outputs
- Free access to the EBMX App
- All mounting hardware is reused from the stock controller.
- Programming cable and Bluetooth module
- X-9000 V3
Install video can be watched here:
EBMX App User Manual: https://drive.google.com/file/d/11jmD4QAz2745wXwXT0rU_mG-NSMy7ssB/view?usp=sharing
EBMX x-900 Android App: https://play.google.com/store/apps/details?id=com.ebmx.ridecontrol
EBMX x-900 IOS/Apple App: https://apps.apple.com/us/app/ebmx/id1660497388
EBMX application tutorial can be found here: https://www.youtube.com/watch?v=Lh9kwcJHH7o
Talaria 81.4v 22s Trojan Evo Battery REALLY ROCKS!
This incredible and exclusive Talaria Sting Trojan Evo 82 Long Range 4060Wh Battery. Power has been increased and capable of a blistering 32kw (burst, but we advise a max controller setting depending on your standard motor). Top speed circa circa 75MPH. The wheel lifting acceleration is stunning.
The specially built 22s 81.4v Trojan Evo battery fits directly into your bike. No seat lift kit necessary. We do ask you to remove the battery seat tray from your bikeThis is super easy as there are only 4 screws to remove. We supply a heavy duty self adhesive foam pad, to replace the tray. This gives a lower aspect and improves cushioning for the battery. Also add the two small spacers (we supply – included) that go between the battery latch and battery lid on your bike (5mm).
81.4v 4060Wh Battery
We replace the OEM 72v Battery 2500Wh (available power) with our huge 81.4v 4060Wh battery, giving monster increases in range and raw power. This allows the motor to spin faster and harder and still allows the motor to run at lower temperatures.
Peak Power: 32kW/400A Peak
Cells
There are 220 Full Production EVE 50 PL CCC 21700 cells in this battery and all have internal resistance. The more resistance, the more heat they produce, until they start to damage. So with this low resistance, they are able to supply enormous amounts of power without over heating.
Power
This is a Talaria Sting MX5 Pro Trojan Evo 82v Long Range 4060Wh Battery with a continuous output of 20kW and burst power of 32kw. Power is limited due to the single power cables and connector. More extreme power can be found with the 81v Evolution battery.
Exoskeleton /Casing
We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.
Connectors
We use the same type Talaria battery connector as the original battery.
Specifications for Talaria Sting Trojan Evo 82 Long Range 4060Wh Battery
Cell Specification
Model: 50PL CCC
Size: 21700
Chemistry: INR
Nominal Capacity: 5000mAh
Nominal Voltage: 3.6V
Discharge: 45A Continuous per cell Max 100A
Positive: Flat/Button Top/Tabs (please select)
Rechargeable: Yes
Dimensions: 21.1mm x 70.4mm
Battery Compartment Lids or Lifting Kits
Because of the extra battery height (375mm) minor modification will needed to your bike.
There are several options:
#1 Fit an aftermarket battery compartment lid
#2 Remove the battery plastic base tray in the bike (simply remove the 5 small allen key bolts from the top looking down) and fit our 5mm spacer between the metal battery lid catch and the lid (spacers provided)
#3 Seat Lift Kit option: https://www.electroncycles.co.uk/product/talaria-mx-seat-lift-kit-black-full-e-charged/
Battery Charging
First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”. Always charge your battery in a safe place and never unsupervised.
6A Charger Included
Upgraded charger available here: https://electroncycles.com/product/charger-81v-92-4v-12a/
* This Battery will not work with an original standard Talaria Controller
Regen & High Power Set Ups
Running regen on high power set ups can cause damage to both the controller and your battery. The motor can give massive power spikes if the motor is quickly turned into a generator from wheel spin and re-engagement (wheelies, jumps, hitting pot holes hard etc.). The battery is designed to give high power and BMS mosfets struggle to suddenly have such a large reverse current fed into them.
We have seen well known third party controllers give damaging current as the controllers become unreliable under reverse polarity caused by their regen settings. “Motor Off” and thumb regen should be set low or better still turned off. If you are running extreme power like 20+ KW (250A, regen must be turned off. Failure to do so may invalidate your warranty.
*Bike Not Included
