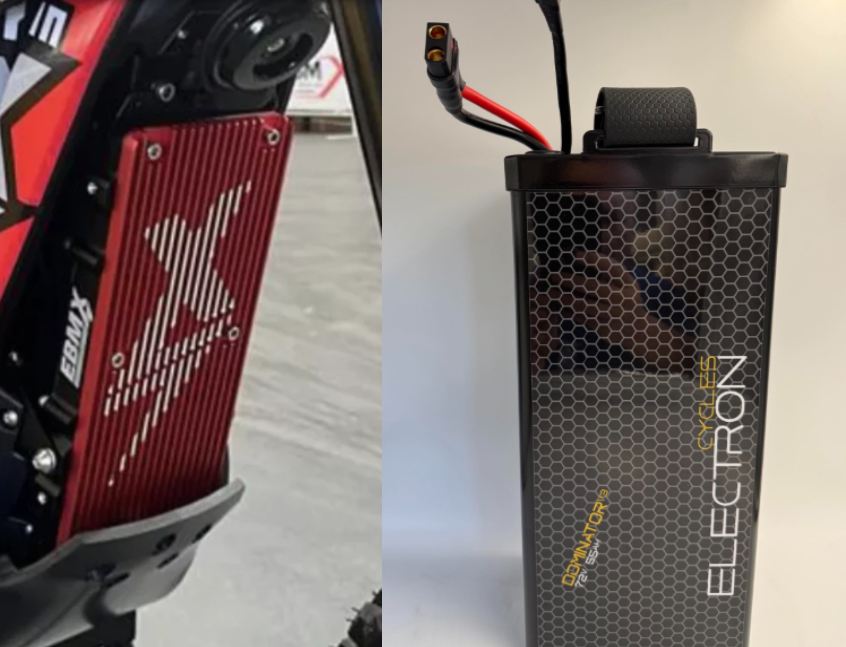

Talaria (all Stings) 72V EBMX X-9000 V3 & 72v 55Ah Dominator V4 Battery

Including charger

* Power up to 25Kw

Controller + Display + 72v 55Ah Battery

600A Phase and 25000W with aftermarket motor, 14Kw with OEM

Black , Gold,  Blue, Purple and Red*

Higher Volts, Higher Amps Higher RPM+  Higher Speed !

All taxes and import duties paid and free UK shipping – with you in 3 days!

Full UK Support & UK Warranty

Spread the cost with finance at 9.9% APR: 6, 12, 24 & 36 monthly terms available

Click here (T&Cs Apply)

Shipping: UK (Free) Additional Shipping for Highlands and Islands +£30
EU land ship available, bank transfer only (20% VAT Removed)
For EU please email: [email protected]
Cash on collection available by appointment

*  (25Kw Burst, motor and use permitting)

Power: Very High (25Kw)
Range: Very High (3960Kwh 264% Over OEM)
Height: Tall (375mm)

*Please state your colour of choice in the Checkout notes

EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Dirt Bike Motor Controller.

The X-9000 V3 has been purpose built from the ground up with a wide range of dirt bike riders in mind and is capable of power inputs of up to 36kW and 900 phase amps and includes many custom features to dial in the performance and feel of your electric dirt bike.

X–9000 V3  Controller Kit (full set up support included)

Comes complete with everything needed for self-installation including plug and play compatibility for Sur Ron Light Bee, Talaria Sting  (*Ultra)  This will work with all batteries that are 60V 72v 80v and 24s

Using components sourced from reputable suppliers, each item has been engineered for peak performance, strength and reliability; from the CNC machined internals and bus bars, custom electronics design, injection moulded cover and fully waterproof construction to the custom phone app to build custom tunes, this controller is raising the bar for the industry.

Whether you are trying to nail a wheelie, riding hard Enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 V3 is built to give you ultimate freedom and control.

We stock: Black , Gold,  Blue, Purple and Red. Please state your colour of choice in the Checkout notes

Kit Includes:

• SW102 Display with custom EBMX firmware and display settings.
• Harness extension for Sur Ron Light Bee and Talaria Sting
• Variable Thumb Throttle
• Air Cooled Heatsink in Black, Red, Blue or Gold
• Harness for programmable 12v outputs
• Free access to the EBMX App
• All mounting hardware is re­used from the stock controller.
• Programming cable and Blue­tooth module
• X9000 V3

Install video can be watched here:

EBMX App User Manual: https://drive.google.com/file/d/11jmD4QAz2745wXwXT0rU_mG-NSMy7ssB/view?usp=sharing

EBMX x-900 Android App: https://play.google.com/store/apps/details?id=com.ebmx.ridecontrol

EBMX x-900 IOS/Apple App: https://apps.apple.com/us/app/ebmx/id1660497388

EBMX application tutorial can be found here: https://www.youtube.com/watch?v=Lh9kwcJHH7o

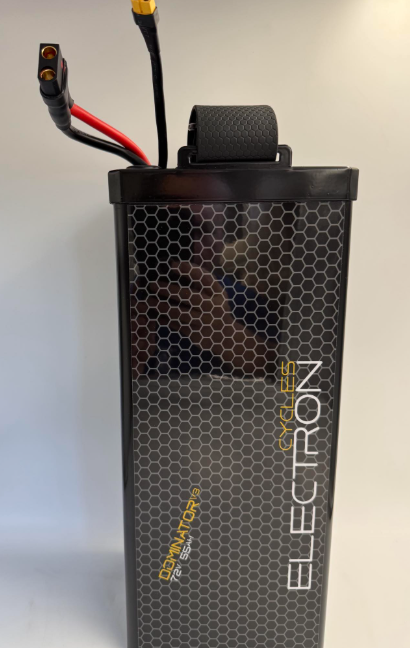

72v 55Ah Dominator V4 Battery

Our premium battery just got better!!! We swapped out the brilliant Molicel P42A and upgraded to one of the most expensive cells money can buy: The class leading Samsung 50S 21700 cylindrical steel jacketed cells (no puffy cheap pouches here). These cells give almost 20% more range than the Molicel and can supply the monster amp draw our controllers require.

We then swapped out our standard 330A BMS for a special order 400A BMS. This means these batteries can now continuously supply 180 amps and burst to 400A. This new super high output power can now handle bikes with the extra powerful: Sotion, EBMX and KO motors; yet keep the std OEM Talaria motor  running for huge long rides.

We then upgraded the casing from Stainless steel 304 to marine grade 316 so absolutely no rust issues here! Super tough and powder coated inside and out.

And last of all, and by no mean feat we massively improved the internal transfer of power by replacing all the connectors with pure copper sheet. This lowers resistance, reduces internal heat and make the battery even more efficient as it delivers sustained higher power to your controller.

Fitting

The battery uses two sets of discharge cables. One to fit the original bikes connector (for Talari we supply an adapter so it can also fit a Sur Ron too). The second goes to an additional cable that we provide that is fixed direct to the controller. This enables the power to be fed “In Parallel” increasing the electrical flow, reducing resistance and reducing harmful heat. It shares the power delivery and takes the strain away from the original loom. However these must be connected in a correct order (Simple instructions supplied)

Specifications

When connecting the battery to the bike and to avoid a spark. Turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing battery has no special order.

Charging

First time charging is VERY important. Always connect the charger to the battery with the charger powered up from the mains. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time.

The battery does require an after market battery compartment lid or seat lifting kit – not included

Battery Compartment Lids or Lifting Kits

Because of the extra battery height (375mm) minor modification will needed to your bike.

There are several options:

#1 Fit an aftermarket battery compartment lid

#2 Remove the battery plastic base tray in the bike (simply remove the 5 small allen key bolts from the top looking down) and fit our 5mm spacer between the metal battery lid catch and the lid (spacers provided)

#3 Seat Lift kit option #1 here (Not Included): (£25 refund off seat lift kit issued with purchase of battery):

We do not warranty damage caused from your fitting. Every kit is bench tested before leaving our premises.
