Sur Ron EBMX X9000 V3 Controller Atom Battery 72v 62Ah

 Huge Range, High Power, 25Kw

700A Phase and 25000W

Fits Motors: OEM, Sotion -EBMX – QS Motors)

NO PROGRAMMING NEEDED (free remote set up support)

Finance Available (T&C’s apply) Apply Here

Shipping: UK next day (free).
EU land ship available, bank transfer only (20% VAT Removed)
(For EU please email: [email protected])
Cash on collection available by appointment)

Power: High (25Kw)
Range: Ultimate High (4464Wh)
Height: Very Tall (387mm)

Please state colour choice in check out notes

Sur Ron EBMX X9000 V3 Controller Atom Battery 72v 62Ah 25Kwhigh range battery on the UK market. Expect speeds of over 70 mph witha 58T rear sprocket on OEM motor (48T on Sotion, 60T on EBMX)

ALL NEW EBMX X-9000 V3 Controller

Built from the ground up for serious riders and racers, the EBMX X-9000_V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.

Whether you’re dominating urban streets, carving trails, or hitting the racetrack, the X-9000_V3 delivers unmatched power, precision, and customization.

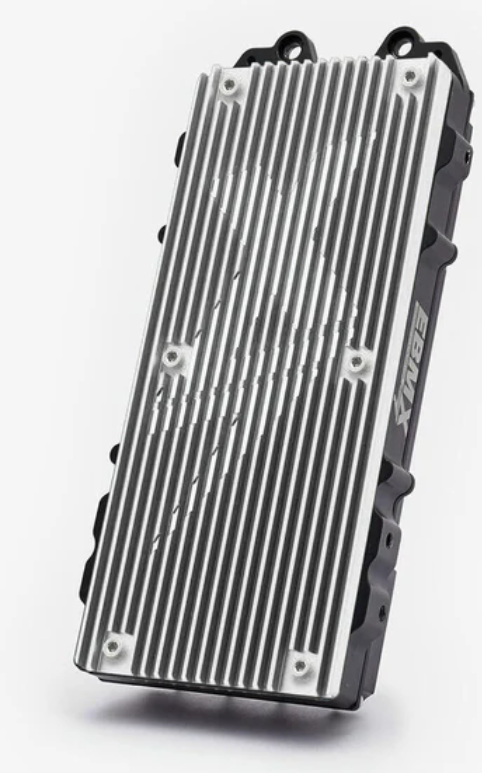

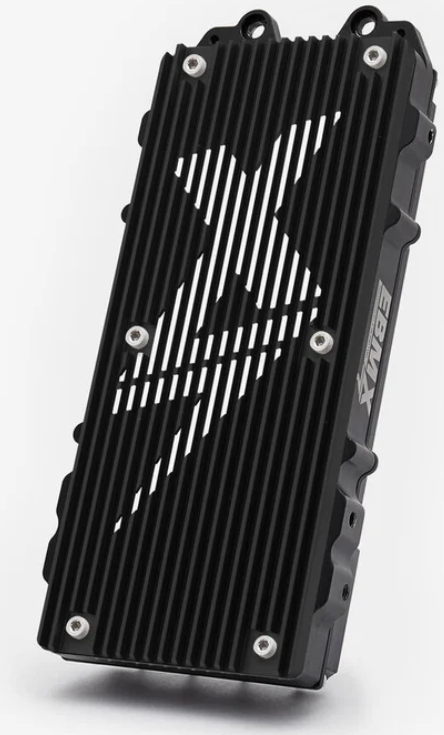

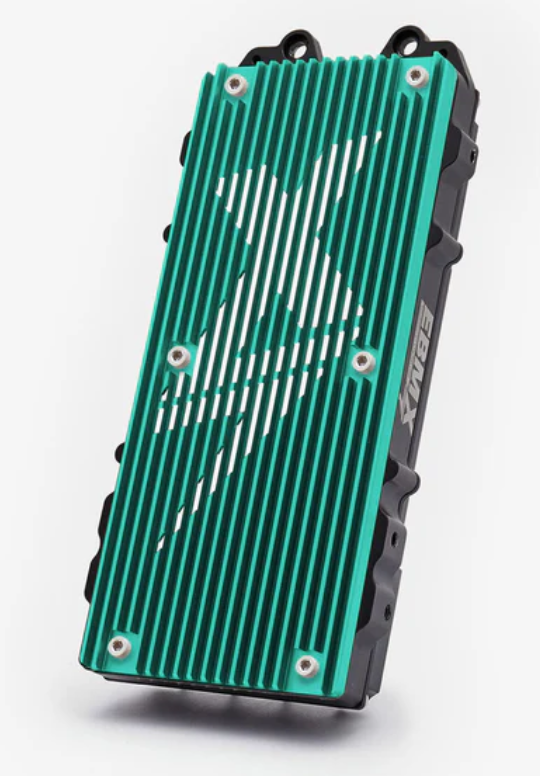

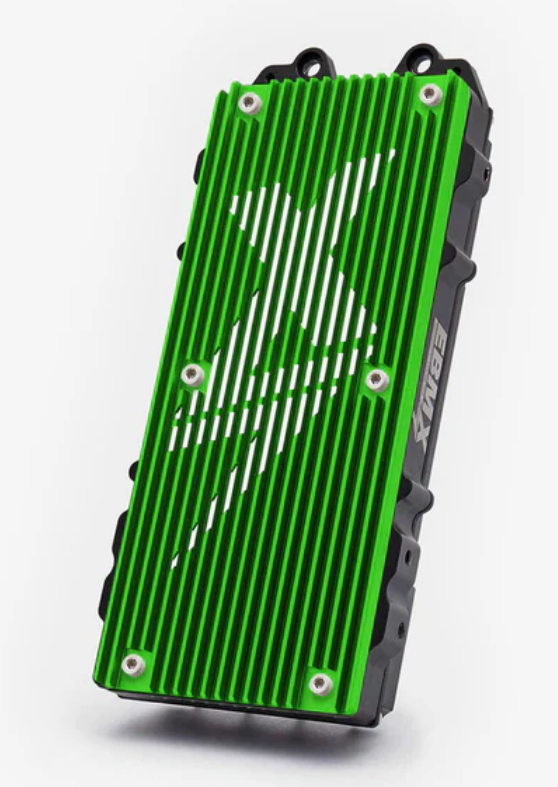

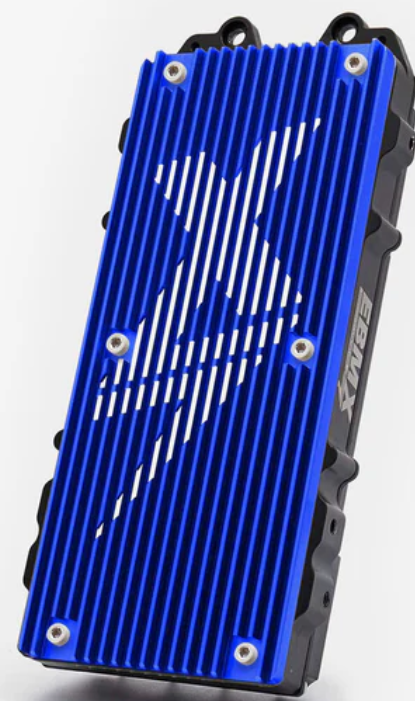

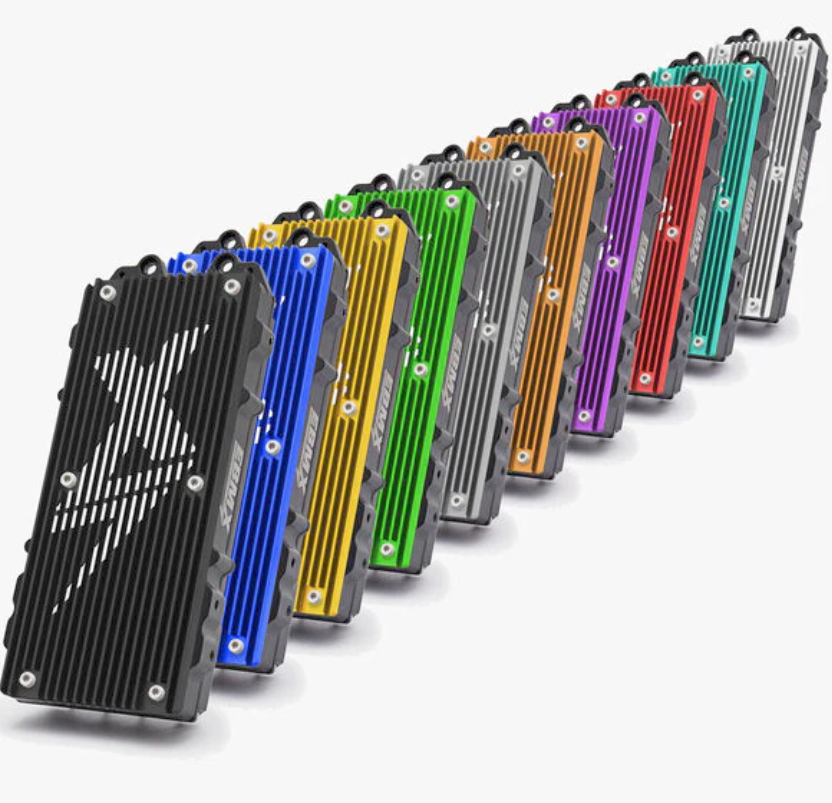

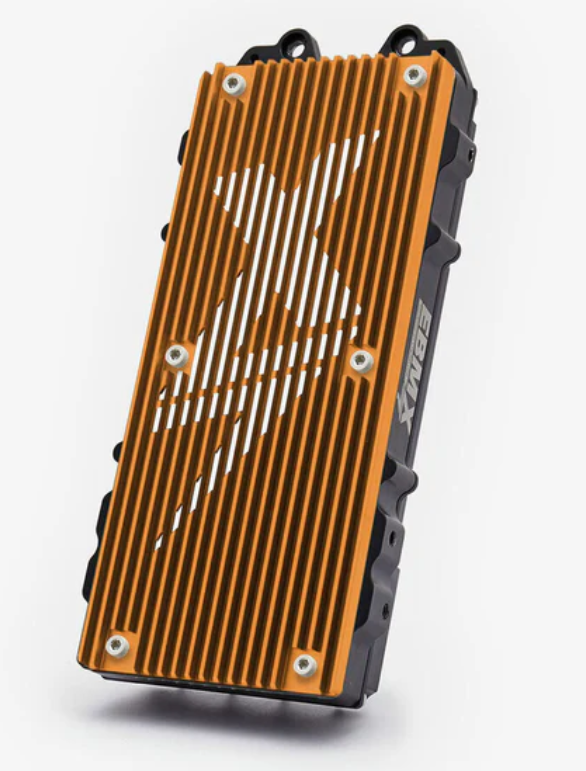

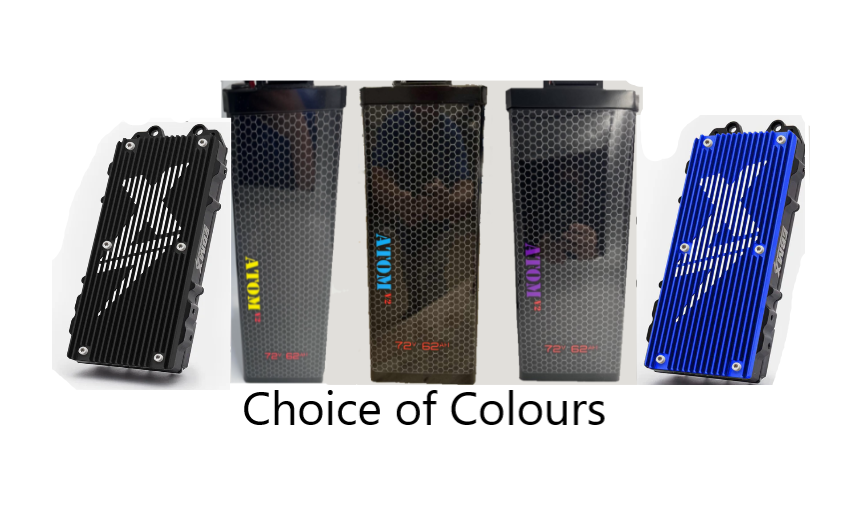

We stock: Black, Blue, Gold, Purple, Red. Please ask for other cloures and state choice at checkout notes

Power Meets Control

• 50kW Output | 1000A Phase Current | 1600A Burst
• 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
• Water-Cooling Option for race-level endurance
• IP67 Rated & CNC Alloy Case – Built to take the punishment
• Max Battery Amps 700amp

Next Gen Logic

• Industry-Leading 68 IO Support – Runs anything, from race bikes to full featured builds
• Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
• Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
• Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability

Race-Ready, Rider Tuned

• 6 Fully Customizable Power Levels (Race + Street Modes)
• Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
• Load & Go Battery Profiles – Over 15 plug-and-play setups
• Preloaded Motor Tunes – 30+ motors supported out of the box
• One-Touch Updates – OTA firmware & compatibility expansion
• The current list of Motors that the X-9000 is compatible with is below:
  • OEM SurRon Light Bee
  • OEM SurRon Ultra Bee
  • OEM Talaria Sting MX3
  • OEM Talaria Sting R MX4
  • OEM Talaria Sting MX5
  • EBMX XLB-60
  • EBMX XTA-60
  • EBMX XUB-80
  • KO RS SurRon
  • KO F Spec SurRon
  • KO F Spec Talaria
  • QS138 – 90H
  • QS138 – 70H
  • OEM E Ride Pro SS 2.0
  • OEM E Ride Pro SS 3.0
  • OEM E Ride Pro SR

  EBMX X-9000-V3 SPECIFICATIONS
  RATED POWER	50kw (CONTINUOUS)
  VOLTAGE	120v
  WORKING VOLTAGE RANGE	48v – 110v
  PHASE	1000A (continuous) 1600A (burst)
  MOSFETS	Infineon
  CONTROL PROTOCAL	Field Oriented Control (FOC) VESC
  FEATURES	Build in IMU for integrated wheel-lift control Dual hall throttle ready X-Series App compatible for custom tuning Pre tuned for stock and aftermarket batteries Tuned for 30+ motors
  FIRMWARE	VESC based motor control and firmware modified by EBMX
  OPERATING TEMPERATURE RANGE	-25 to 80 Degrees Celsius

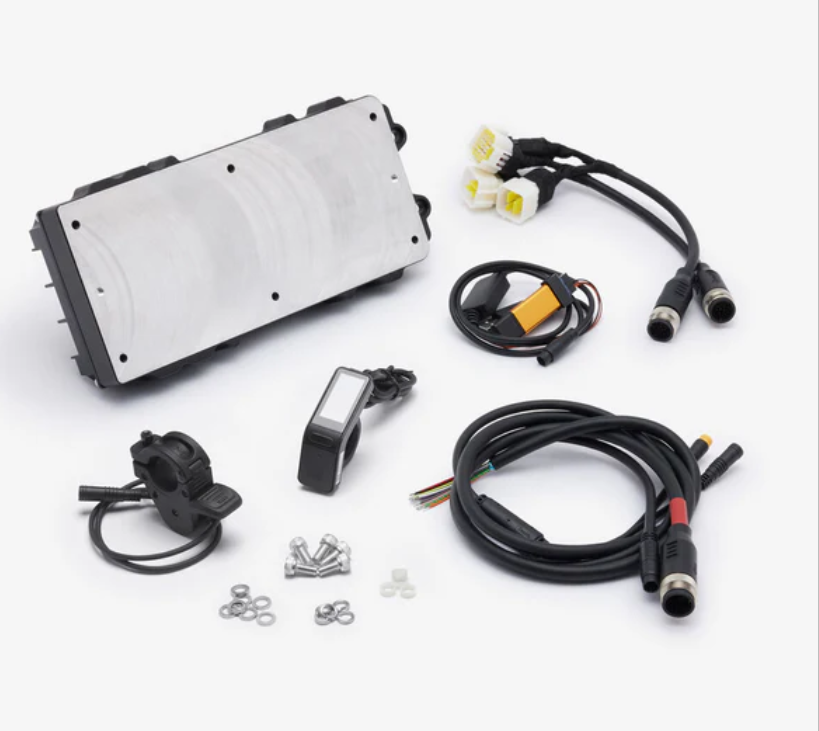

  Kit Contents	X-9000 Controller Plug and Play Harness and Mount Kit Air Cooled Heat Sink (Black) SW102T Color Display Thumb Throttle Bluetooth Module 1-2 Harness
  WATERPROOFING	IP67
  WARRANTY	2 Years

Videos

EBMX V9000 v3 video:                                           https://youtu.be/-Ay1rBUgxAA?si=wEPzELoGFGXJ36Mc
How to setup EBMX WLA for launch assist:      https://youtu.be/r1PxCsEOzik?si=SqQjD-GAEM9OqWUk
Light bee 2025 X9000_V2 install:                       https://youtu.be/r1PxCsEOzik?si=TflLh00FgGksTI97

Compatible Bike Model:
Sur-Ron Light Bee

Compatible Motors – YOU MUST HAVE THE CORRECT CONTROLLER TO BIKE LOOM. THIS LISTING IS FOR SUR RON LIGHT BEE
VTB Beast 28kW
VTB Beast 35kW
Sur-Ron Light Bee Factory
Sur-Ron Ultra Bee Factory
TALARIA Sting Factory
79 bike Falcon Factory
QS165
LTXS
Sotion FW01
Sotion Talaria

Battery

The whole battery is fitted in  hand made stainless steel grade 316 case, designed to handle those inevitable and hopefully not painful “Offs” with hard off road rides and giving masses more protection. The casing is powder coated inside and out.

The battery is fitted with a qs8 high power connector with a free ppwer loom supplied.

Specifications Battery

If you  install a seat lift kit, you wil need a shorter battery lift kit, avaialabe here:

When connecting the Sur Ron Battery to the bike and to avoid a spark. Turn the red trip switch on the bike to off.

We give free setup and tuning support

• This is for one controller kit and one battery only. Bike not inlcuded.
