Sur Ron 72V 32.5kw EBMX X9000 V3 Race Pro 72v 45Ah Molicell Battery . Choice of Heat Sink Colours
Black , Gold, Gold, Blue, Purple, Red
Higher Volts, Higher Amps Higher RPM+ Higher Speed !
Spread the cost with finance at 9.9% APR: 6, 12, 24 & 36 monthly terms available
Click here (T&Cs Apply)
Shipping: UK (Free) Additional Shipping for Highlands and Islands +£30.
EU land ship available, bank transfer only (20% VAT Removed)
(For EU please email: [email protected])
Cash on collection available by appointment
Power: Very High (32.5KW)
Range: High (3024Kwh 201% Over OEM)
Height: Medium (353mm)
*Battery Activation Required On Delivery
Please email [email protected] on reciept of your battery to have it activated and tracking turned off.
Please state at check out colour required
Description

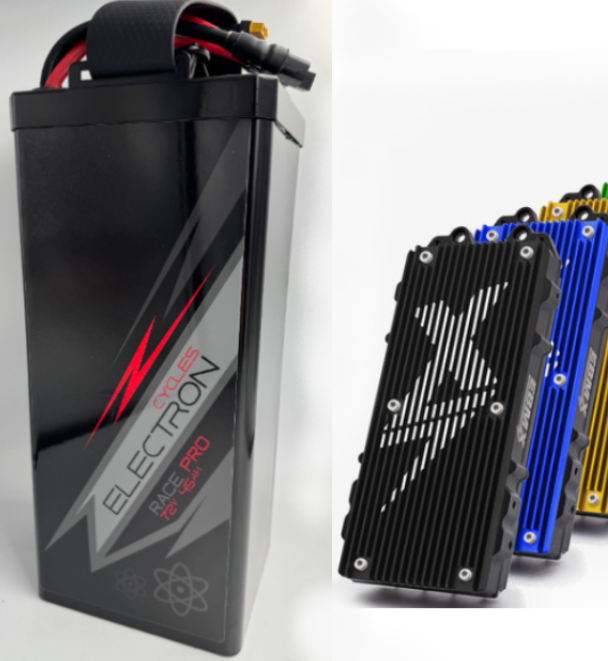

Sur Ron 72V 32.5Kw EBMX X9000 V3 Race Pro 72v 45Ah with a Choice of Heat Sink Colours. EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Dirt Bike Motor Controller.
The X-9000 has been purpose built from the ground up with a wide range of dirt bike riders in mind and is capable of power inputs of up to 36kW and 900 phase amps and includes many custom features to dial in the performance and feel of your electric dirt bike.
-
Power Meets Control
- 50kW Output | 1000A Phase Current | 1600A Burst
- 30 120V Infineon MOSFETs for performance and reliability under extreme conditions
- Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
- Water-Cooling Option for race-level endurance
- IP67 Rated & CNC Alloy Case – Built to take the punishment
- Max Battery Amps 700amp
Next Gen Logic
- Industry-Leading 68 IO Support – Runs anything, from race bikes to full featured builds
- Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
- Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
- Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability
Race-Ready, Rider Tuned
- 6 Fully Customizable Power Levels (Race + Street Modes)
- Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
- Load & Go Battery Profiles – Over 15 plug-and-play setups
- Preloaded Motor Tunes – 30+ motors supported out of the box
- One-Touch Updates – OTA firmware & compatibility expansion
- The current list of Motors that the X-9000 is compatible with is below:
- OEM SurRon Light Bee
- OEM SurRon Ultra Bee
- OEM Talaria Sting MX3
- OEM Talaria Sting R MX4
- OEM Talaria Sting MX5
- EBMX XLB-60
- EBMX XTA-60
- EBMX XUB-80
- KO RS SurRon
- KO F Spec SurRon
- KO F Spec Talaria
- QS138 – 90H
- QS138 – 70H
- OEM E Ride Pro SS 2.0
- OEM E Ride Pro SS 3.0
- OEM E Ride Pro SR
EBMX X-9000-V3 SPECIFICATIONS RATED POWER 50kw (CONTINUOUS) VOLTAGE 120v WORKING VOLTAGE RANGE 48v – 110v PHASE 1000A (continuous)
1600A (burst)MOSFETS Infineon CONTROL PROTOCAL Field Oriented Control (FOC) VESC FEATURES Build in IMU for integrated wheel-lift control
Dual hall throttle ready
X-Series App compatible for custom tuning
Pre tuned for stock and aftermarket batteries
Tuned for 30+ motorsFIRMWARE VESC based motor control and firmware modified by EBMX OPERATING TEMPERATURE RANGE -25 to 80 Degrees Celsius Kit Contents X-9000 Controller
Plug and Play Harness and Mount Kit
Air Cooled Heat Sink (Black)
SW102T Color Display
Thumb Throttle
Bluetooth Module
1-2 HarnessWATERPROOFING IP67 WARRANTY 2 Years
Install video can be watched here:
EBMX App User Manual: https://drive.google.com/file/d/11jmD4QAz2745wXwXT0rU_mG-NSMy7ssB/view?usp=sharing
EBMX x-900 Android App: https://play.google.com/store/apps/details?id=com.ebmx.ridecontrol
EBMX x-900 IOS/Apple App: https://apps.apple.com/us/app/ebmx/id1660497388
EBMX application tutorial can be found here: https://www.youtube.com/watch?v=Lh9kwcJHH7o
Battery
Sur Ron 72V 32.5Kw EBMX X9000 V3 Race Pro 72v 45Ah batter We call this the “RacePro” as its light and super powerful and now with even more upgrades: Upgraded Internal Configuration, Upgrade High Power BMS, New Handle and New Graphics and full Stainless Steel 316 casing.
We upgraded this very popular battery to handle more power. More Nickle sheet (lower resistance and heat). Bigger more powerful hybrid BMS giving 80 Amps more,. A new stronger lifting stapes. New stunning graphics.
Please make sure your controller is set to a power rating that will not damage your motor. The battery is the “fuel tank” and it is the controller that controls how much “fuel” (Power) it takes and gives to the motor.
These power packs are designed for ultimate power supply and are 116% bigger watts hours (3240Kwh) compared to the standard battery (1500Kwh) and able to give out 4times the power (discharge -amps).
Torp do not like direct power to the controller (our second cable), so please just do not use the additional power cable supplied. We do not like to remove these as often buyers transfer batteries to another bike.
QS8 Connector available on second connector on request, Free of charge
Specifications Sur Ron Race Pro 72v 45Ah
Charging: First time charging is VERY important. Always connect the charger to the battery with the charger powered up from the mains. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time.
Finance
To apply for finance please click the link: https://ideal4finance.com/retail/apply/elecyc
Electron Cycles Limited is an introducer appointed representative of Ideal Sales Solutions Ltd T/A Ideal4Finance. Ideal Sales Solutions is a credit broker and not a lender (FRN 703401). Finance available subject to status. The rate offered is always provisional and will depend upon your personal circumstances, the loan amount and term.
Warranty terms, please check here:
Disclaimer please check here:
https://electroncycles.com/terms-and-conditions/
We reserve the right to slightly modify or change this product without notice.
Bike not included
